🎮 Overview

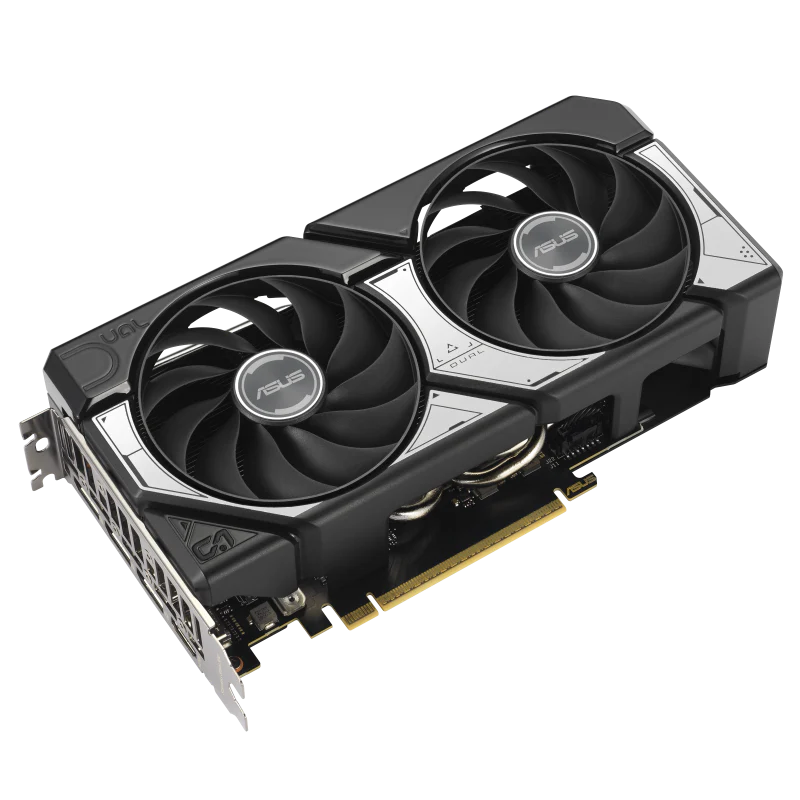

The DUAL-RTX5060TI-O16G combines NVIDIA’s Blackwell architecture, DLSS 4, and 16GB of ultra-fast GDDR7 memory with ASUS’s Axial-tech cooling and 2.5-slot design. It’s optimized for 1440p and entry-level 4K gaming, AI-enhanced workflows, and compact PC builds.

⚙️ Key Features

• NVIDIA Blackwell Architecture

  • 5nm GB206 GPU with 4608 CUDA cores

  • 4th-gen Ray Tracing cores + 5th-gen Tensor cores

  • AI performance rated at 767 TOPS

• 16GB GDDR7 Memory

  • Memory speed: 28 Gbps

  • 128-bit interface with 448 GB/s bandwidth

  • Ideal for high-resolution textures and multitasking

• OC Mode Performance

  • Boost Clock: 2632 MHz (OC Mode) / 2602 MHz (Default)

  • Base Clock: 2407 MHz

• Advanced Cooling

  • Dual Axial-tech fans with barrier rings for downward pressure

  • 0dB technology for silent operation under low loads

  • Compact 2.5-slot design for broad compatibility

• Display & Connectivity

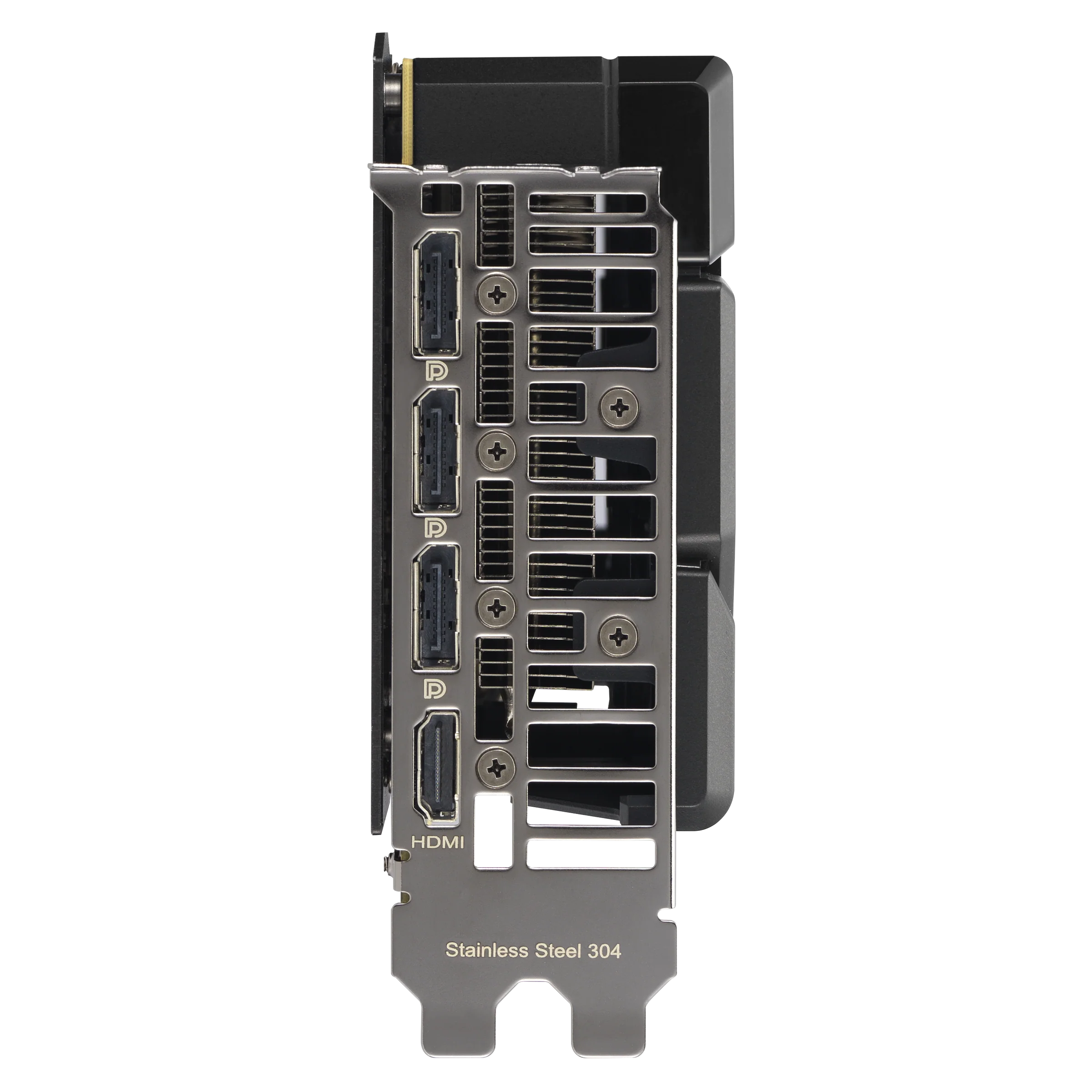

  • 1× HDMI 2.1b, 3× DisplayPort 2.1b

  • Max resolution: 7680 × 4320

  • PCIe 5.0 interface

  • HDCP 2.3 support

• Build & Power

  • Dimensions: 229 × 120 × 50 mm

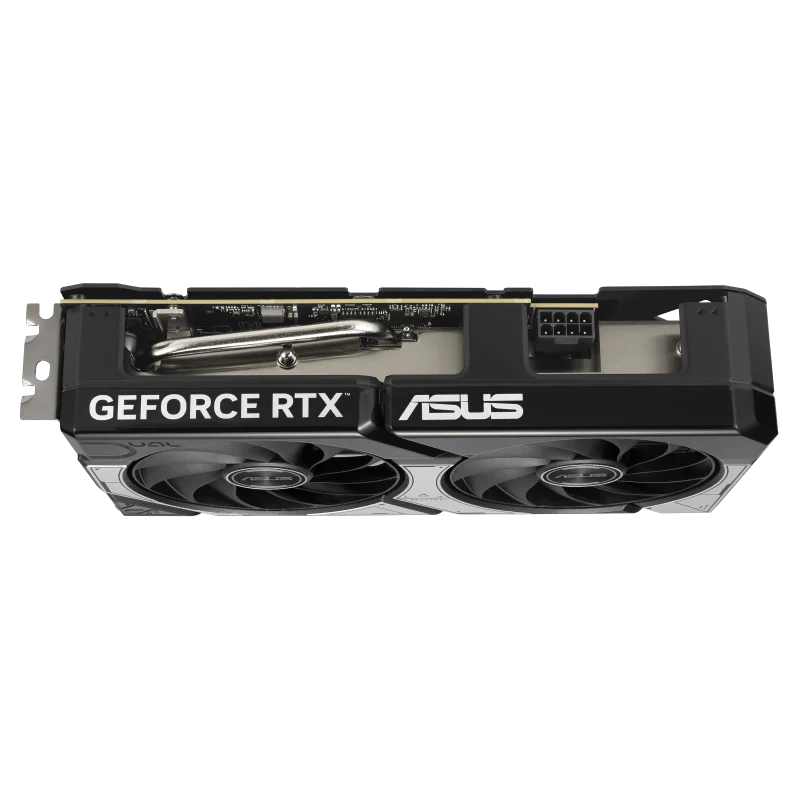

  • Power connector: 1× 8-pin

  • Recommended PSU: 550W

• Software & Extras

  • ASUS GPU Tweak III, MuseTree, GeForce Game Ready & Studio Drivers

  • Includes SpeedSetup Manual and Thank You Card

📐 Specifications Summary

💡 Why It’s a Smart Choice

• ✅ Next-gen GDDR7 memory for future-proof performance

• ✅ Compact dual-fan design for wide case compatibility

• ✅ DLSS 4 + Ray Tracing for immersive visuals

• ✅ PCIe 5.0 for maximum bandwidth

• ✅ ASUS reliability with advanced cooling and tuning tools
