TDP

280W

Pump head

Pump Dimensions

L79*W96.5*H62.5mm

Base material (CPU contact surface)

Copper

Pump speed

800-2500RPM±200RPM (support variable speed)

Water pump Material

PPS

Pump Bearing

Stainless Shaft

Pump Connector

PWM 4pin

Rated Voltage

DC 12V

Rated Current

≦0.35 A

Rated Input Power

≦4.2 W

Noise(Max)

30dB

Max.lift head

1.5M

Minimum discharge

1300 mL/min

Storage temperature

-10℃～70℃

Operating temperature

-10℃～60℃

M.T.B.F

30000hrs

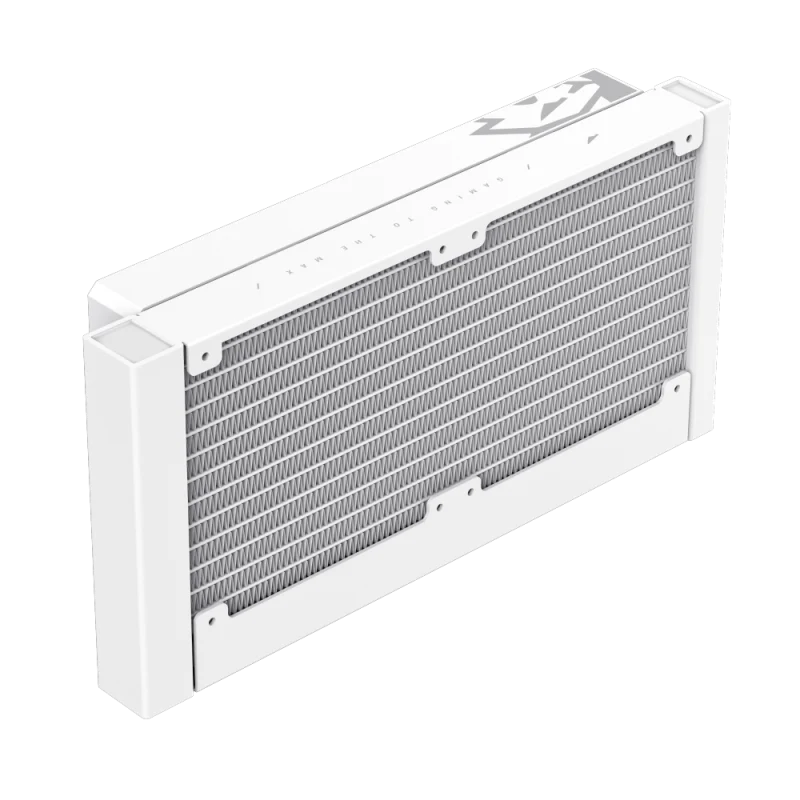

Cold platoon

Cold platoon size

L277*W139*H27mm

Cold platoon material

Aluminum

Water pipe

Water pipe material

Braided pipe

Length of water pipe

L=263±3mm

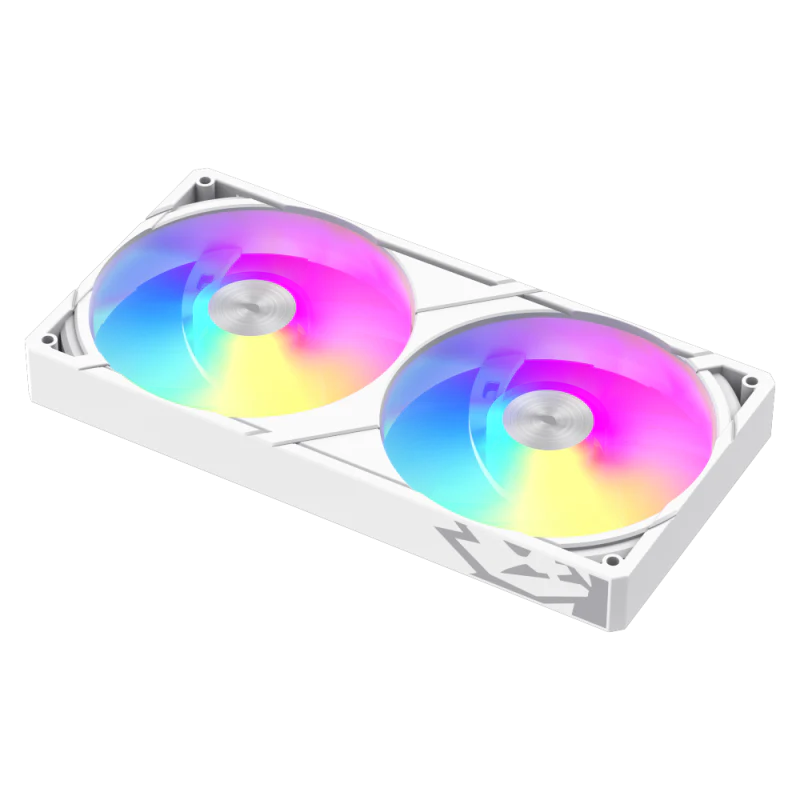

Fan

Model number

240 integrated fan

Dimensions

L240mm x W120mm x H25mm

Fan Speed

800~2000 rpm ± 10%

Fan Bearing

Hydraulic bearing

Air Pressure

2.23mm - H2O

Air flow

85.82 CFM

Noise

31.5db(A)

Mode of control

PWM, ARGB

Rated Voltage

DC 12V

Rated Current

0.7 A

Rated Input Power

8.4 W

Main functions

Display

3.95”

Resolution

720*720 px

Refresh rate

60Hz

Brightness

300nits

Compatibility

Intel

LGA115X/1200/1366/1700/1851

AMD

AM4/AM5

Content of packaging

Integrated water cooling

1

Fan

1x240mm

Buckles

1

Thermal Grease.

1

User's Manual

1

Package Information

Package Contents

Gift Box

Unit Packaging Dimensions

TUB

Unit Net Weight

Unit Gross Weight

Carton Packaging Dimensions

TUB

Q’TY Per box

6

Weight Per box
