PSU Specifications

AC INPUT: 100-240 VAC 15-5A 50-60Hz
DC Output Max	+3.3V	+5V	+12V	-12V	+5VSB
	20A	20A	60A	0.5A	2.5A
	800W

Detailed Specifications

Dimensions:	160mm x 85mm x 150mm (W x H x D)
Input Voltage:	100-240 VAC
Input Current:	15-5A
Input Frequency Range:	50-60Hz
PFC:	Active PFC (>.99)
Power Good Signal:	100-150 ms
Hold Up Time:	>9ms
Efficiency:	> 82% (88% max)
MTBF:	> 100,000 Hours
Protection:	OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
Power:	800W
Operation Temperature:	0-40C
Safety:	CE / FCC / CB

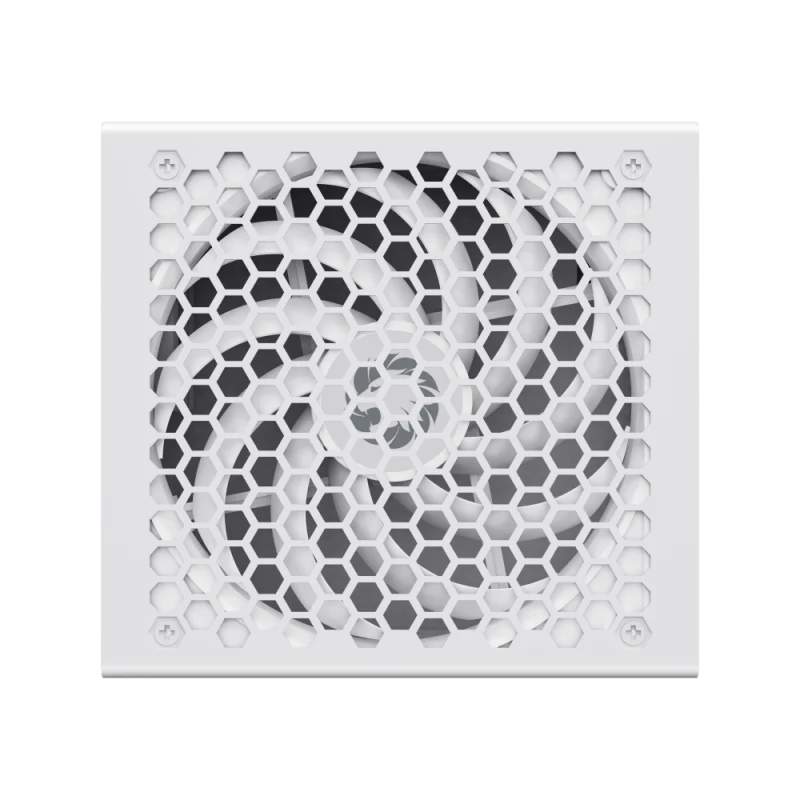

Cooling:	140mm Ultra Silent Fan
Noise:	<25dba<>
80 Plus Certified:	Yes - 80 Plus Bronze

General Specifications

Manufacturer Part Number:	GM-800 WH
EAN Number:	6931858740586
Has Mains Plug:	No
Colour:	White
What's In The Box:	Power Supply Screws Manual 5 x Output Cables 2 x Cable Ties
Unit (Product) Dimensions (mm):	160mm x 85mm x 150mm (W x H x D)
Packaging Dimensions (mm):	335mm x 242mm x 122mm (W x H x D)
