TDP

330W

Pump head

Pump Dimensions

L79*W96.5*H62.5mm

Base material (CPU contact surface)

Copper

Pump speed

800-2500RPM±200RPM (support variable speed)

Water pump Material

PPS

Pump Bearing

Stainless Shaft

Pump Connector

PWM 4pin

Rated Voltage

DC 12V

Rated Current

≦0.35 A

Rated Input Power

≦4.2 W

Noise(Max)

30dB

Max.lift head

1.5M

Minimum discharge

1300 mL/min

Storage temperature

-10℃～70℃

Operating temperature

-10℃～60℃

M.T.B.F

30000hrs

Cold platoon

Cold platoon size

L397*W120*H27mm

Cold platoon material

Aluminum

Water pipe

Water pipe material

Braided pipe

Length of water pipe

L=400±3mm

Fan

Model number

Tornado T12 ARGB

Dimensions

L120mm x W120mm x H25mm

Fan Speed

800~2200 rpm ± 10%

Fan Bearing

Hydraulic bearing

Air Pressure

2.62mm - H2O

Air flow

66.89 CFM

Noise

32.12db(A)

Mode of control

PWM, ARGB

Rated Voltage

DC 12V

Rated Current

0.18A

Rated Input Power

2.16W

Main functions

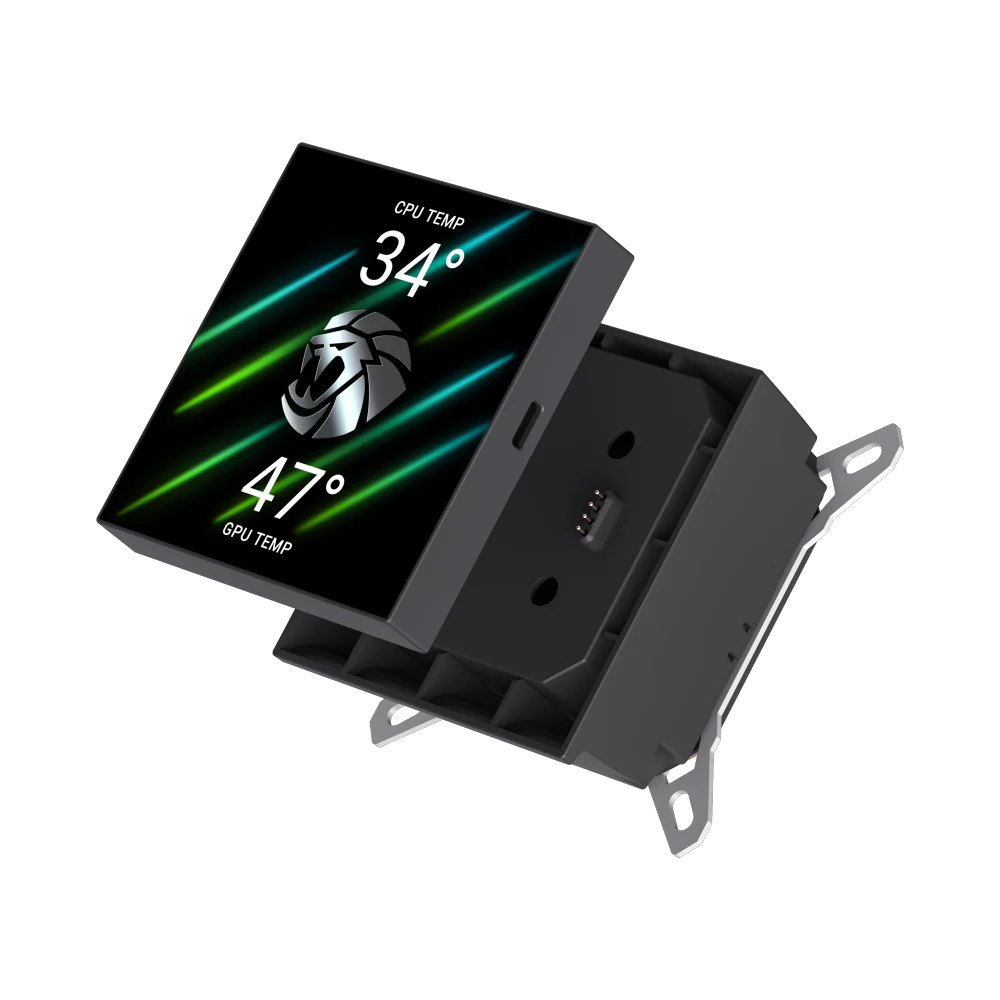

Display

3.95”

Resolution

480*480 px

Refresh rate

60Hz

Brightness

250 nits

Compatibility

Intel

LGA115X/1200/1366/1700/1851/2011

AMD

AM4/AM5

Content of packaging

Integrated water cooling

1

Fan

3x120mm

Buckles

1

Thermal Grease.

1

User's Manual

1

Package Information

Package Contents

Gift Box

Unit Packaging Dimensions

455x215x143mm

Unit Net Weight

Unit Gross Weight

Carton Packaging Dimensions

480x450x305mm

Q’TY Per box

4

Weight Per box
