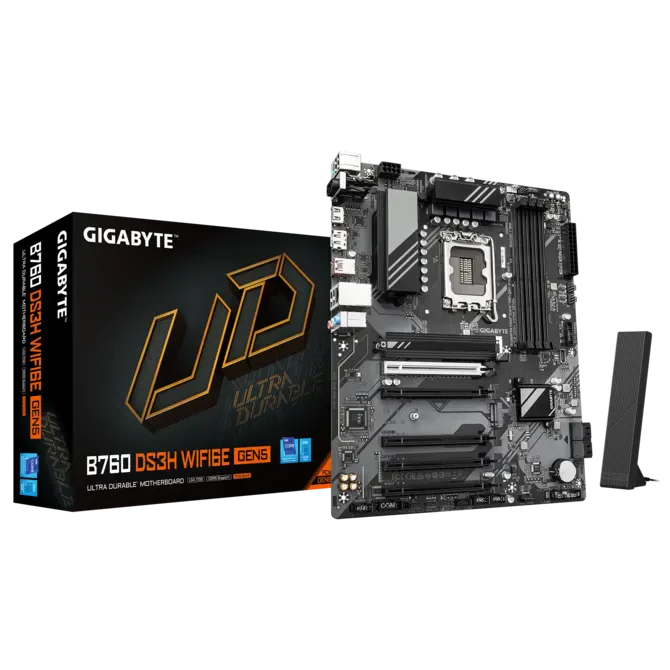

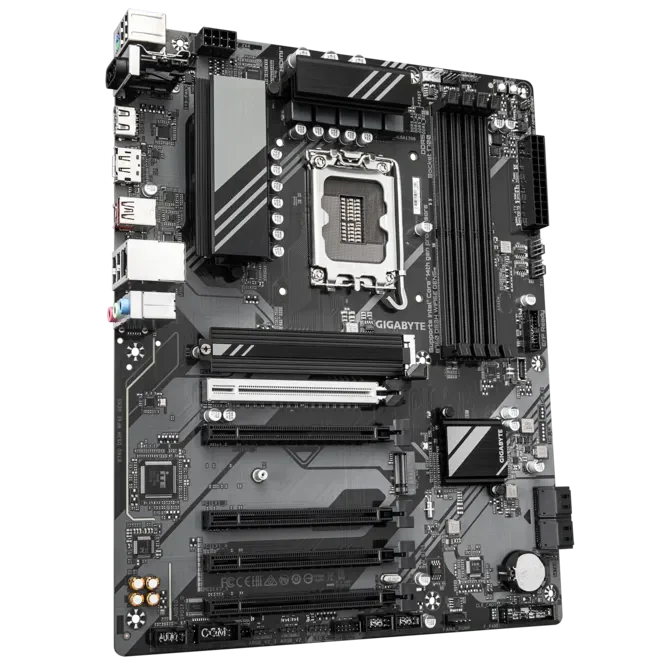

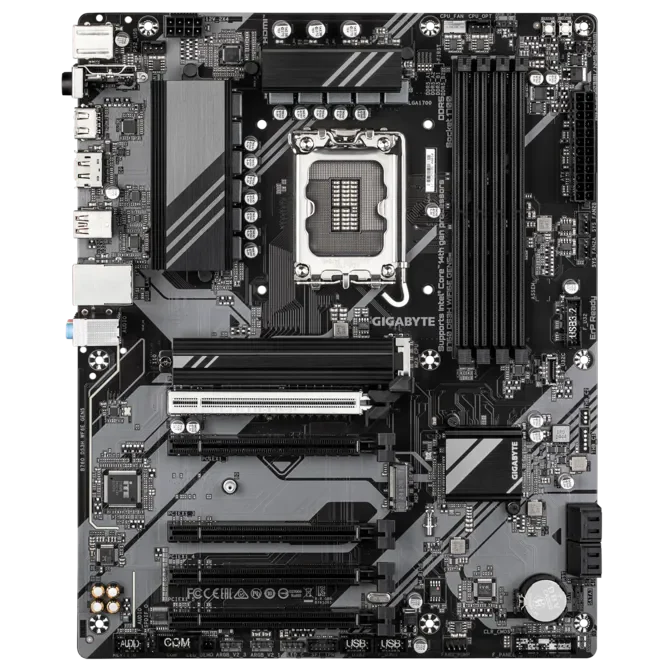

Gigabyte B760 DS3H WiFi‑6E Gen5 ATX DDR5 Motherboard

Model: B760 DS3H WiFi‑6E Gen5
Type: ATX Motherboard
Socket: Intel LGA1700
Chipset: Intel B760
Colour: Black / Gaming Design

Key Features

• Supports 14th, 13th & 12th Gen Intel Core processors
• 4× DDR5 DIMM slots, dual channel, up to 128GB
• Memory speeds up to 7600MT/s (OC), supports Intel XMP
• PCIe 5.0 x16 slot for next‑gen graphics cards
• Dual M.2 slots (PCIe 5.0 + PCIe 4.0) with EZ‑Latch screwless design
• WiFi‑6E + Bluetooth 5.3 + 2.5GbE LAN
• HDMI 2.1 and DisplayPort 1.4 outputs for multi‑display setups
• 10+2 phase digital VRM with enhanced thermal design
• Smart Fan 6 technology for efficient cooling

Specifications

Attribute	Details
Brand	Gigabyte
Model	B760 DS3H WiFi‑6E Gen5
Socket	LGA1700
Chipset	Intel B760
Form Factor	ATX
Memory	4× DDR5 DIMM, up to 128GB, 7600MT/s (OC)

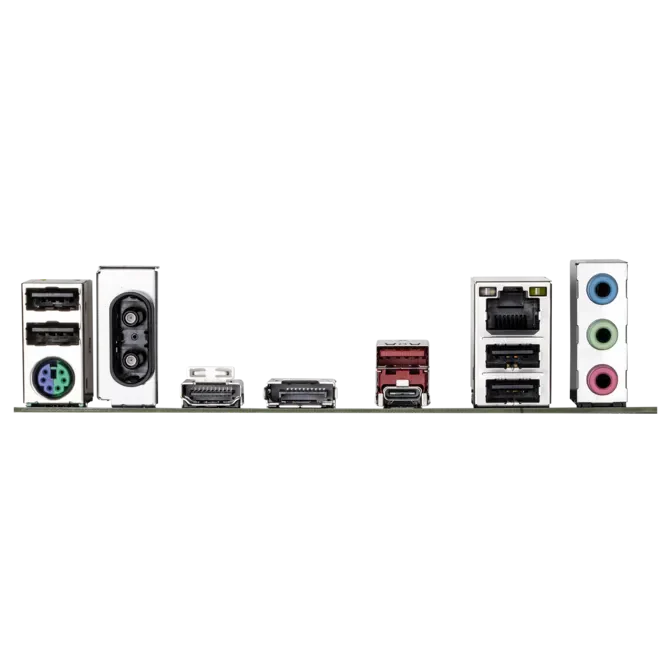

Graphics Outputs	HDMI 2.1, DisplayPort 1.4
Networking	WiFi‑6E, Bluetooth 5.3, 2.5GbE LAN
Audio	Realtek HD Audio, 7.1 channel
Expansion Slots	1× PCIe 5.0 x16, 1× PCIe 3.0 x4
Storage	2× M.2 (PCIe 5.0 + 4.0), 4× SATA 6Gb/s
Power Design	10+2 phases VRM, Smart Fan 6
Colour	Black / Gaming Design

Benefits

• 14th Gen ready — supports latest Intel Core CPUs
• High‑speed connectivity — PCIe 5.0 slots for GPUs and NVMe SSDs
• Next‑gen networking — WiFi‑6E and 2.5GbE LAN for ultra‑fast online gaming
• DIY friendly — EZ‑Latch quick release for PCIe/M.2 slots
• Efficient cooling — Smart Fan 6 keeps system temperatures stable
