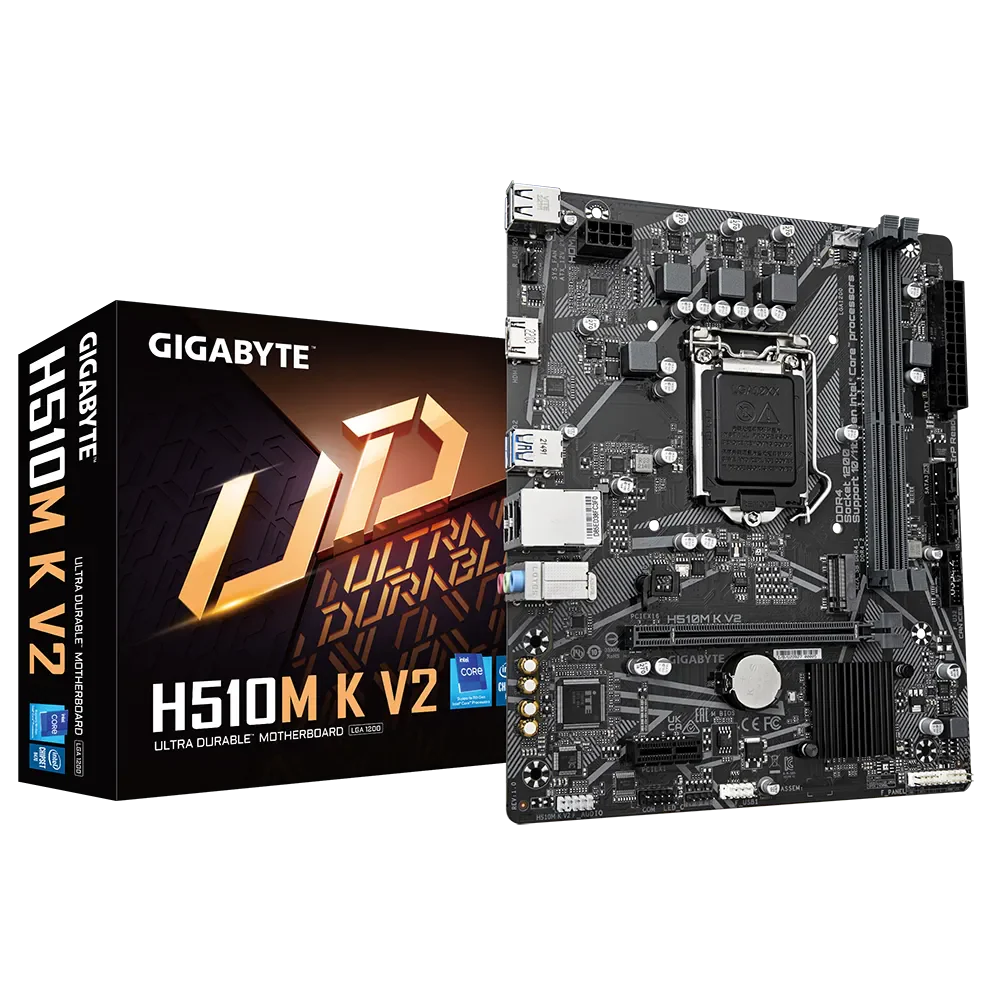

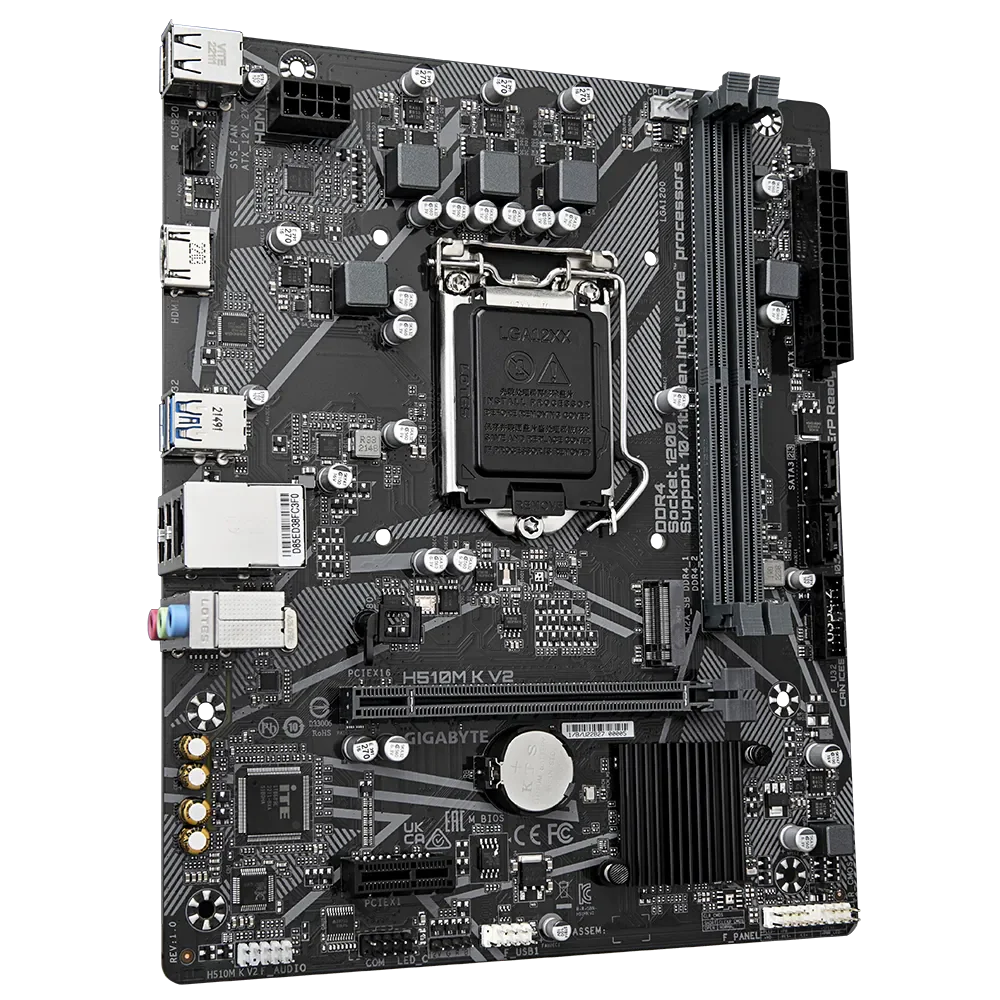

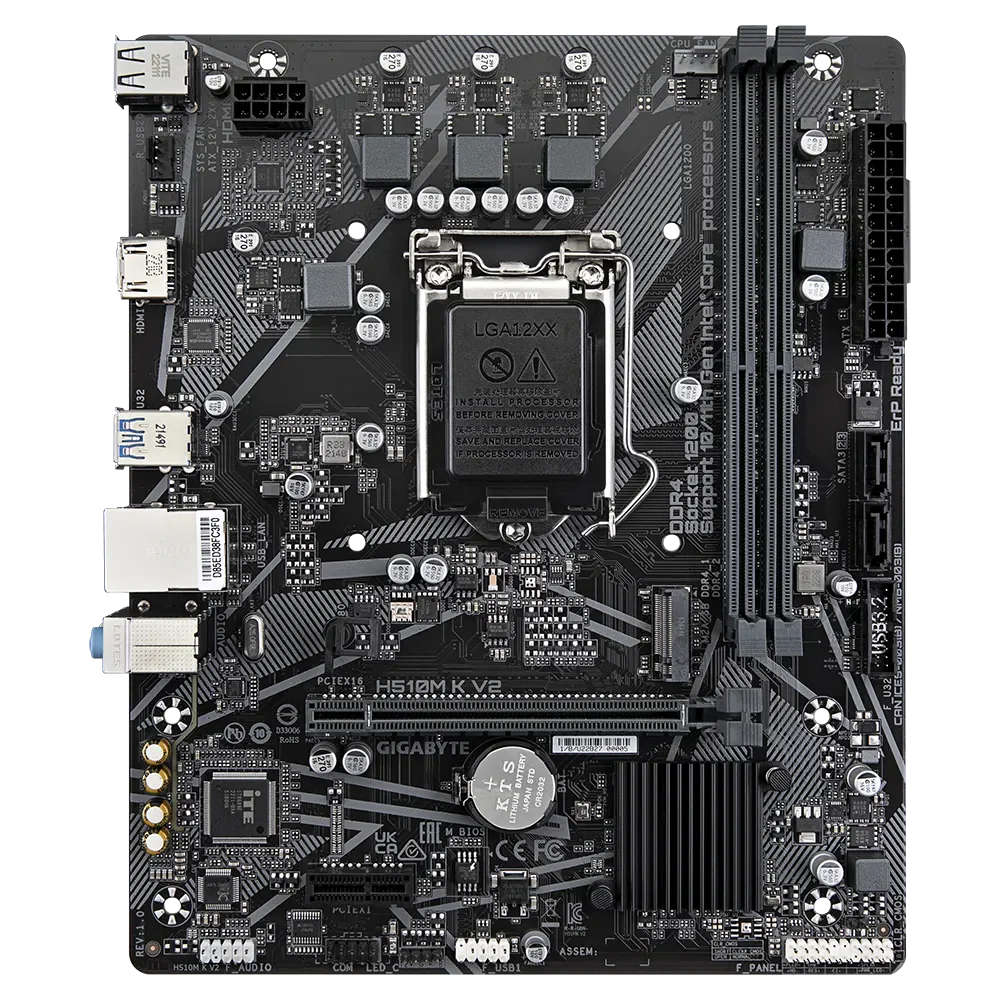

Gigabyte H510M K V2 10th & 11th GEN CPUs

Gigabyte H510M K V2 10th & 11th GEN CPUs

đŸ–„ïž Motherboard Overview

  • Chipset: IntelÂź H510

  • Form Factor: Micro‑ATX

  • Memory: Dual‑channel DDR4, up to 64GB (2 DIMMs)

  • Expansion: 1× PCIe 4.0 x16 slot (for GPUs), 1× PCIe 3.0 x1

  • Storage: 1× M.2 (PCIe Gen3 x4 / SATA), 4× SATA 6Gb/s

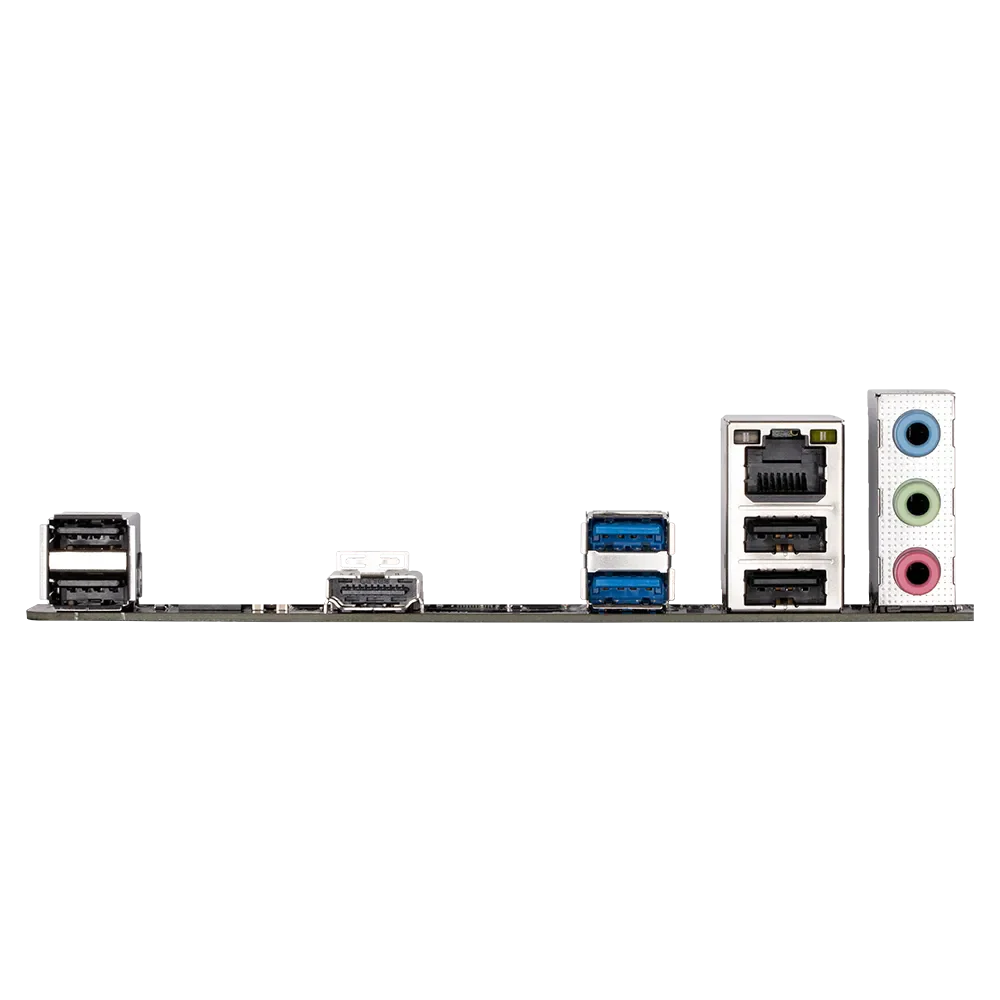

  • Connectivity: GbE LAN, USB 3.2 Gen1, HDMI, D‑Sub

  • Audio: 8‑channel HD audio with high‑quality capacitors

  • Cooling: Smart Fan 5 with multiple sensors and hybrid fan headers


⚡ CPU Compatibility

The Gigabyte H510M K V2 supports both 10th Gen and 11th Gen Intel Core processors (LGA1200 socket). The 11th Gen CPUs you can use:

Series Supported CPUs
Core i9 i9‑11900K, i9‑11900KF, i9‑11900, i9‑11900F, i9‑11900T
Core i7 i7‑11700K, i7‑11700KF, i7‑11700, i7‑11700F, i7‑11700T
Core i5 i5‑11600K, i5‑11600KF, i5‑11600, i5‑11600T, i5‑11500, i5‑11400, i5‑11400F, i5‑11400T
Core i3 i3‑11100, i3‑11100T, i3‑11100B, i3‑11100TE
Pentium Gold G6605, G6505, G6405 (11th Gen refresh)
Celeron G5905, G5905T (11th Gen refresh)

👉 Note: Some lower‑end Pentium/Celeron SKUs are technically 10th Gen refreshes but still supported on this board.


🔧 Important Notes

  • To use 11th Gen CPUs, make sure your BIOS is updated to the latest version from Gigabyte’s support page.

  • PCIe 4.0 support (for GPUs and NVMe SSDs) is only enabled when using an 11th Gen Core i5/i7/i9 CPU.

  • With 10th Gen CPUs, the PCIe slot runs at Gen3 speeds.
