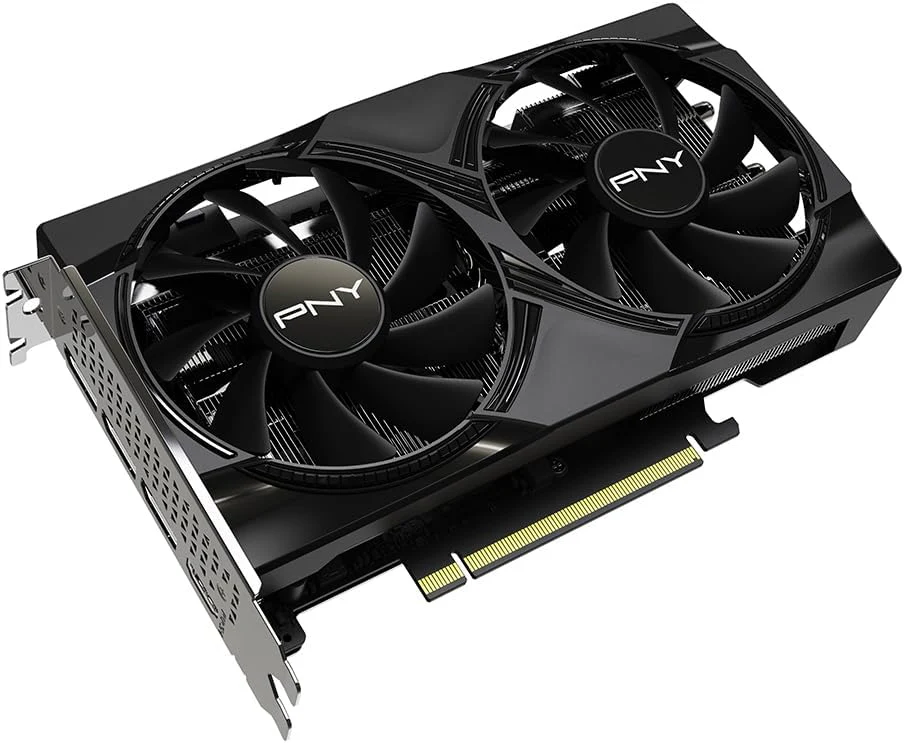

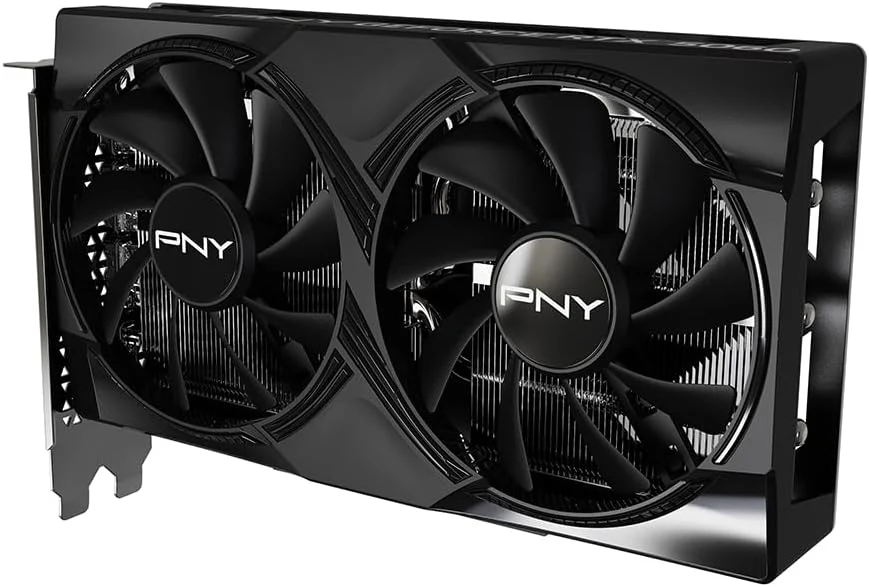

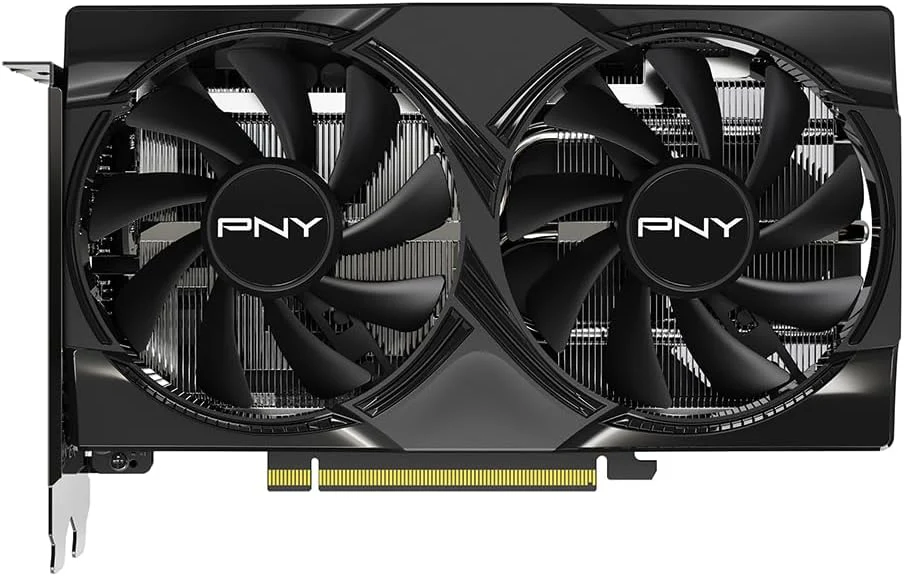

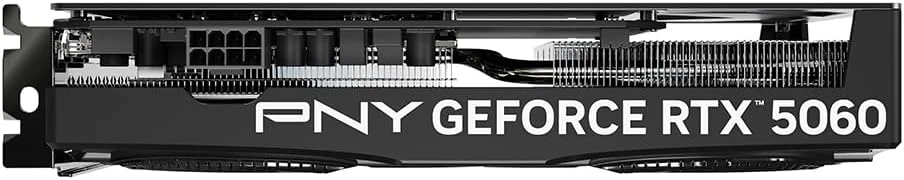

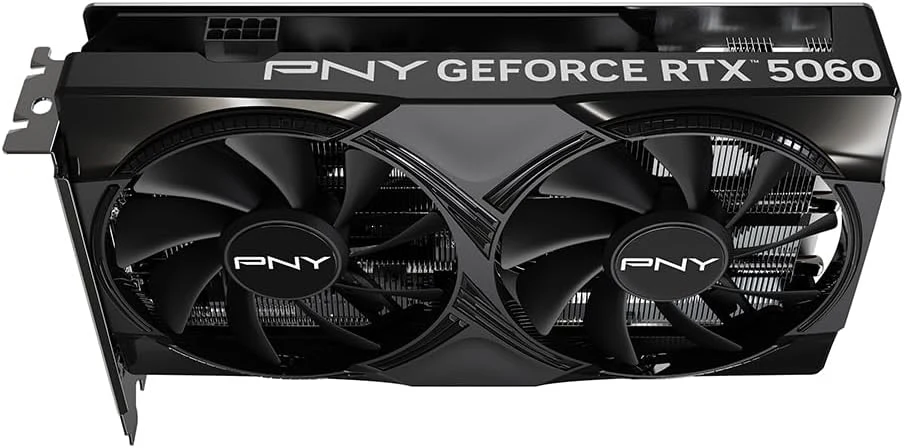

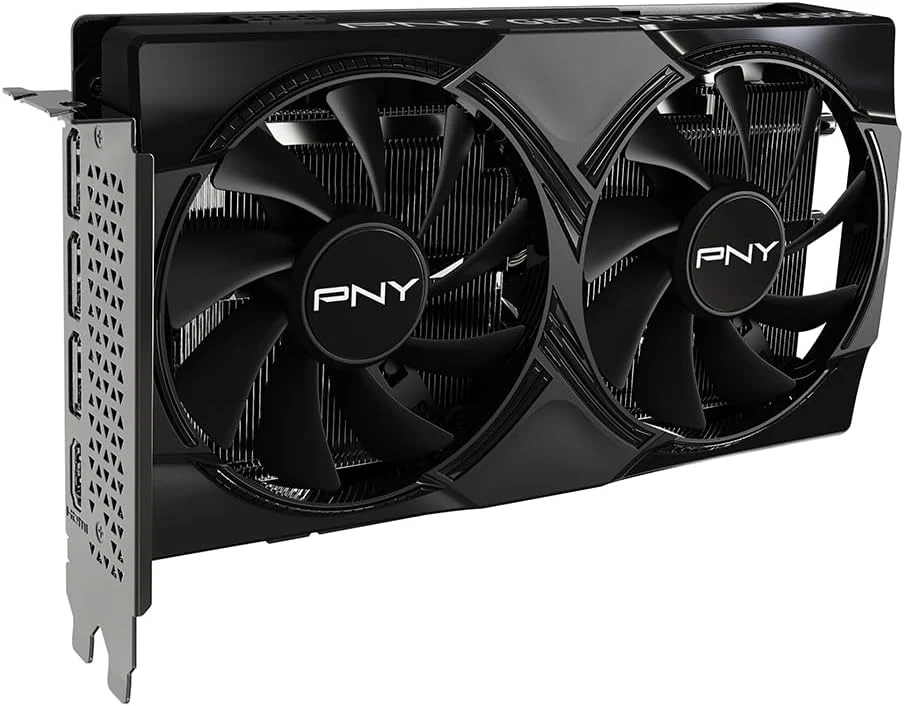

🖥️ Overview The PNY RTX 5060 is an 8GB GDDR7 GPU built on NVIDIA’s Blackwell architecture, offering a big leap in efficiency, AI acceleration, and ray tracing compared to the RTX 40‑series. It supports DLSS 4, 4th‑gen Ray Tracing Cores, and 5th‑gen Tensor Cores, making it a strong choice for 1080p and 1440p gaming at high frame rates, as well as AI‑assisted creative workflows.

PNY offers multiple cooling designs: Single Fan, Dual Fan, Dual Fan OC, and Triple Fan ARGB OC.

⚙️ Key Features

• NVIDIA Blackwell Architecture

  • Next‑gen GPU cores optimized for AI and ray tracing

  • Neural shaders for advanced rendering

• 8GB GDDR7 Memory

  • Faster bandwidth than GDDR6

  • 128‑bit memory interface

• 3840 CUDA Cores

  • Boost clock up to ~2535 MHz (varies by model)

• DLSS 4 & Ray Tracing

  • AI‑powered frame generation and upscaling

  • 4th‑gen RT cores for realistic lighting and reflections

• AI Acceleration

  • 5th‑gen Tensor Cores with FP4 precision

  • NVIDIA Studio support for creators

• Connectivity

  • 3× DisplayPort 2.1

  • 1× HDMI 2.1b

  • Up to 4K 240Hz or 8K 60Hz output with DSC

• Power & Cooling

  • TDP: ~145W

  • Recommended PSU: 550W

  • 8‑pin power connector

  • Cooling: Single, Dual, or Triple Fan (ARGB on higher models)

📐 Specifications Summary

💡 Why It’s a Smart Choice

• ✅ Next‑gen Blackwell architecture = AI‑driven performance boost

• ✅ DLSS 4 = higher FPS with better image quality

• ✅ GDDR7 memory = faster bandwidth for modern games

• ✅ Efficient 145W TDP = runs cool and quiet compared to higher‑end GPUs

• ✅ Multiple PNY models = choose between compact single‑fan or flashy triple‑fan ARGB
